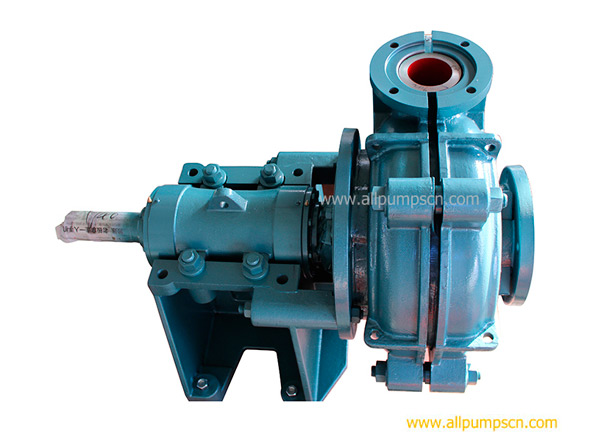

4inch x 3inch C Diamond Concentrate Cyclone Slurry Pump

4x3C diamond concentrate cyclone slurry pump applies to the transportation of very abrasive liquids, such as wastewater containing suspended solids, sewage, sand, mud, black running water from steel plants, and acid. The impeller of open horizontal centrifugal sludge pump allows large-size solids in the suspension pump to pass through, and can handle a large number of materials containing solids. It has excellent performance and low maintenance cost. Horizontal centrifugal sludge pump is a heavy-duty pumping equipment among horizontal centrifugal slurry pump.

horizontal centrifugal slurry pump
horizontal centrifugal slurry pump
heavy duty sludge pump
horizontal slurry pump

Features of 4''x3''C Diamond Concentrate Cyclone Slurry Pump

1. Impeller, whether elastomer, stainless steel or high chromium material, is the main rotating part, usually with blades to transmit centrifugal force to liquid;

2. The shell is a split shell, cast into two halves, including a wear-resistant lining, providing high working pressure capacity. The shell shape is generally semi volute or concentric, and the efficiency is lower than that of volute;

3. The shaft and bearing assembly is a large diameter shaft with short overhang, which can minimize deflection and vibration. Heavy duty roller bearings are installed in removable bearing frames;

4. The shaft sleeve is a hardened, heavy-duty corrosion-resistant shaft sleeve with O-rings at both ends to protect the shaft. The split fit allows quick removal or installation of the sleeve;

5. Shaft seal includes packing seal, mechanical seal and expeller seal;

6. Transmission mode includes belt transmission and coupling transmission.

Want to learn more features about China horizontal slurry pump, contact All Pumps Machinery.

Specification of 4''x3''C Diamond Concentrate Cyclone Slurry Pump

POWER (KW)(m3/h)H(m)n(r/min)η%(m)

Slurry Pump Structural Details


Slurry pumps Curve Chart

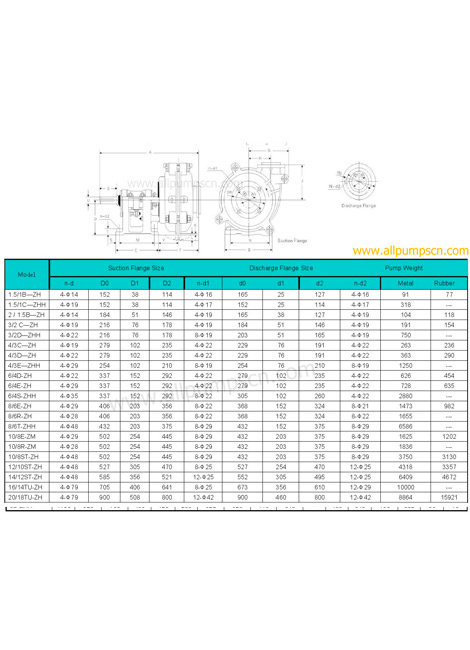

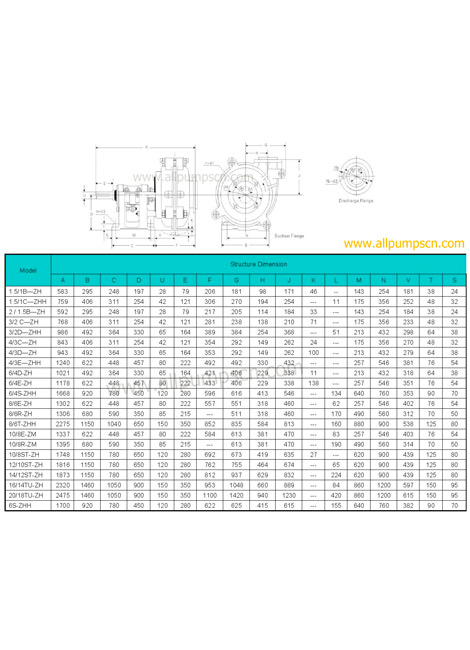

Dimension of 4''x3''C Diamond Concentrate Cyclone Slurry Pump
