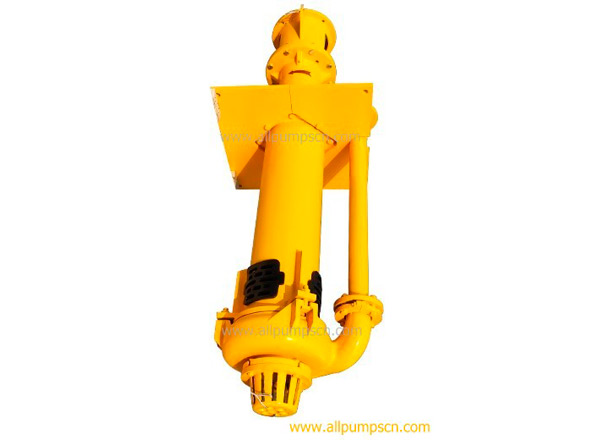

65QV Rubber Vertical Sump Slurry Pump for Mineral Tailing Tank

Name: 65QV Rubber Vertical Sump Slurry Pump for Mineral Tailing Tank
Brand: All Pumps Machinery Company Limited.
Rating: 4.8 (6 reviews)

ZPR vertical rubber slurry pump is designed to convey mud in the oil pan. It is mainly used to deal with mud with high concentration, high corrosivity, invisible edge and light weight. ZPR series do not need any shaft seals and sealing water, and they can also operate normally under insufficient suction load.

Get The Price PDF Download

65qv rubber vertical sump slurry pump for mineral tailing tank

Features of 65QV Rubber Vertical Sump Slurry Pump for Mineral Tailing Tank

1. Cantilever shaft design;

2. Double suction semi open impeller;

3. Agitator option to keep solids suspended;

4. TPR model is covered with full rubber, which is corrosion-resistant;

5. The embedded impeller option passes through oversized materials;

6. Full elastomer lining or hard metal is suitable for application and provides longer service life;

7. No submerged bearing or packing. Large capacity double suction design. Optional embedded impeller and suction mixer.

Discover the exceptional performance of china vertical slurry pump by contacting All Pumps Machinery.

Specification of 65QV Rubber Vertical Sump Slurry Pump for Mineral Tailing Tank

MODEL	MAX.	MATERIAL		Q CAPACITY		HEAD	SPEED	MAX.Eff
MODEL	POWER (KW)	LINER	IMPEL	(m³/h)	(I/S)	H(m)	n(r/min)	%
ZP-65QV	30	M	RU	23.4~111	6.5~30.8	5~29.5	700~1500	50
ZP-65QV	30	M	M	19.8~93.06	5.5~25.85	5~29.5	700~1500	40
ZP-65QV	30	M	M	23.4~87.12	6.75~24.2	5.5~31.5	700~1500	58
ZPR-65QV	30	RU	RU	22.5~105	6.25~29.15	5.5~31.5	700~1500	51
ZP-65QV	30	M	M	18.9~89.1	5.25~24.75	5~28	700~1500	35
