All Pumps Machinery Company Limited.

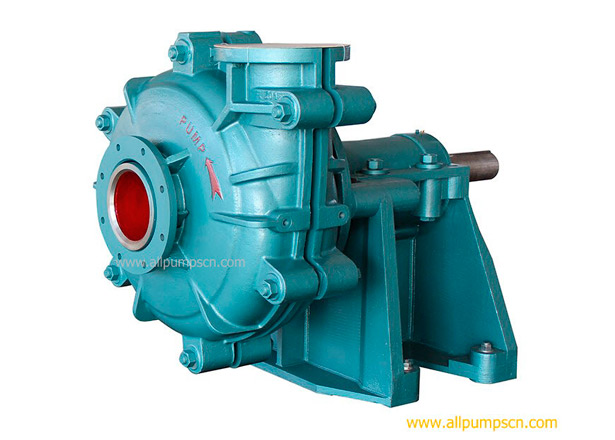

10inch x 8inch E-ZM Fine Primary Mill Grinding Slurry Pump

Horizontal, end suction, split, heavy duty, centrifugal slurry pumps, extensive external stiffeners allow higher head and higher pressure pumping systems, and the expanded liquid receiving end components can handle the most difficult applications, usually used for long-distance transportation lines;

horizontal centrifugal slurry pump
horizontal centrifugal slurry pump
heavy duty sludge pump
horizontal slurry pump

Features of 10''X8'' E-ZM Fine Primary Mill Grinding Slurry Pump

1. The heavy-duty structure designed with through bolts is easy to maintain and the downtime is the shortest;

2. Ductile iron fully lined shell provides durability, strength, safety and long service life;

3. Large diameter, slow rotation and efficient impeller design can achieve maximum wear life and low operation cost;

4. Large open internal channel, designed to reduce internal speed, maximize wear life and reduce operating costs;

5. The thick elastomer or alloy bolt lining provides excellent corrosion resistance, and it is easy to replace the lining and interchangeability, so as to reduce the overall maintenance cost and maximize the wear life;

6. Minimum shaft/impeller overhang reduces shaft deflection and increases packing life;

7. The cartridge bearing assembly can be maintained in a clean environment without disassembling the pump, with reliable operation and extended bearing life;

8. Grease or oil lubricated bearing components are easy to maintain and reduce downtime;

9. The optional dry shaft seal reduces or eliminates the need for flushing water;

10. Effective thrusters extend the life of the packing while reducing or eliminating the need for flushing water

11. Now the combination of throat sleeve and impeller is used to improve efficiency and wear performance;

12. Interchangeability of sealing devices - full flushing, low flow, centrifugal or mechanical seals can be installed on slurry pumps of any size.

Want to explore the capabilities of a China horizontal slurry pump? Get in touch with All Pumps Machinery and find out more about its features.

Specification of 10''X8'' E-ZM Fine Primary Mill Grinding Slurry Pump

POWER (KW)(m3/h)H(m)n(r/min)η%(m)

Slurry Pump Structural Details


Slurry pumps Curve Chart


Dimension of 10''X8'' E-ZM Fine Primary Mill Grinding Slurry Pump
